Torque motor manufacturers processing parts of the process requirements (above)

──Apr 23 , 2021Torque motor manufacturers processing parts of the process requirements (above)

You knowrawProduce oneHow many processes does the torque motor have? Manufacturers in the production of motor, have a set of processes and processes, today we simply understand the production of parts processing requirements:

I.Torque motorLathe processing technology requirements

1.Check whether the diameter of the round steel meets the requirements of the drawing and planning arrangement when cutting, and limit cutting one piece at a time, and release the processing allowance±3mm; Follow-up production can be arranged only after the first root is qualified;

2.Rough bearing position allowance0.5-0.8mmWith double thimble rough machining, shaft extension, bearing position, core position due to leave a margin0.8-1.0mmDuring the processing, it is necessary to ensure that the core position and bearing position meet the requirements of the production drawings.

Two.Torque motorRotor finishing process requirements

1.Double thimble fine turning, shaft extension, bearing position due to leave margin0.15-0.20mmThe outer diameter of the rotor core should be in place. Clean the two top pinholes of the rotor, and maintain the size and rough friction of the rotor bearing position and shaft extension position during fine grinding by the upper grinder;

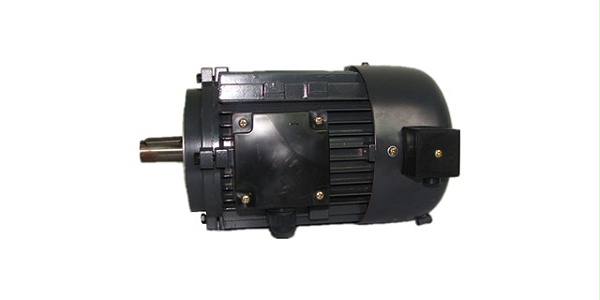

Torque motor

Three.Torque motorStator coil winding process requirements

1.The staff should check whether the specifications and models of the copper wire received are consistent with the production plan, and check whether the appearance of the copper wire has defects such as bubbles and paint distilling that affect the quality of the product; Check whether the winding die is consistent with the model specifications of the production plan, fix the winding die on the winding machine, wind the wire according to the requirements of the winding data, and ensure the accuracy of the number of turns; Turn error±1Turn;

2.The wires are arranged neatly, and the length of the leading part of the coil is40-80mmEach group of coils is allowed to have a connector in the middle of the wire;

The above content is composed ofTorque motorManufacturer Senli motor provided. If you want to know more about this type of motor or are interested in learning about our products, please leave a message online or call us directly0575-8378-1127.
