The "pole number" we usually say refers to the number of magnetic poles of the motor stator field, and the different connections of the stator windings can form different poles of the stator field. SelectThree-phase asynchronous motorThe number of poles is determined by the speed required by the load, and the number of poles directly affects the speed of the motor.
We use the speed=60f/pIn terms of this formula, that is 60 Times the motor frequency, divided by the number of motor poles. According to the formula, it is not difficult to see that the more series, the lower the speed, the fewer poles, the higher the speed.
Three-phase ac motorEach set of coils will produce N,S The number of magnetic poles contained in each phase of each motor is the number of poles. Since the magnetic poles appear in pairs, the motor has 2,4,6,8The best wait. In China, the power frequency is 50 Hertz,2 Polar synchronous speed is 3000r/min,4 Polar synchronous speed is 1500r/min,6 Polar synchronous speed is 1000r/min,8 Polar synchronous speed is 750r/min.
The winding one to go to form a loop, that is, the number of magnetic poles, is in pairs, the pole is the meaning of the magnetic pole, these windings when the current will produce a magnetic field, the corresponding magnetic pole. The current of the motor is only related to the voltage and power of the motor.
The two poles are called high-speed motors, the four poles are medium speed, the six poles are low speed, and the eight poles are greater than or equal to the ultra-low speed.
two-stage 2800-3000 turn / minutes
quadrupole 1400-1500 turn / minutes
Cet 6 900-1000 turn / minutes
Greater than or equal to eight poles is below 760 turn / Minutes.
Three-phase asynchronous motor manufacturers, Senli Motor,19Focus on the development and production of electric motors. Available if needed1688Search factory name "Shengzhou Chaoli Electric Appliance Factory" , Or online consultation message, we will have business personnel to get in touch with you, you can also contact us directly0575-8378-1127.

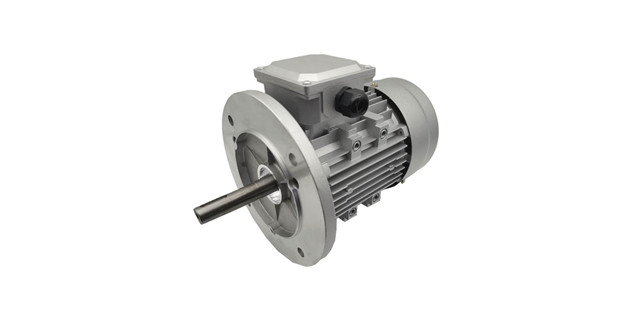

Long axis torque motor products, suitable for winding and winding scenarios, can be customized for different industry scenarios, to meet the requirements of use. This product produced by Senli has the characteristics of reasonable structure, high efficiency, good characteristics and long service life.
Shengzhou Senli Motor19Old motor manufacturers, with a number of their own motor production lines, from the shell, shaft, rotor, stator are independent production, all products are the use of professional product quality supervision and testing equipment full inspection factory, can provide testing reports. From the shaft machining to the whole machine assembly are completed independently. Truly realize factory direct sales.
Senli motor products are used180°High temperature resistance all copper coil material, torque motor products can be used with different rotors (ordinary rotors/Steel rotor), rotor of different motor characteristics are different, we from the shell, shaft, rotor, stator are produced by the independent, all products are the use of professional product quality supervision and testing equipment full inspection factory, can provide testing reports.
