Three-phase asynchronous motors belong to induction motors, which rely on simultaneous access380VThree-phase AC, phase difference120°The working principle is based on the interaction between the stator rotating magnetic field and the rotor current. Today, Senli Motor Xiaobian will explain to you about,Three-phase asynchronous motorThe wiring mode.

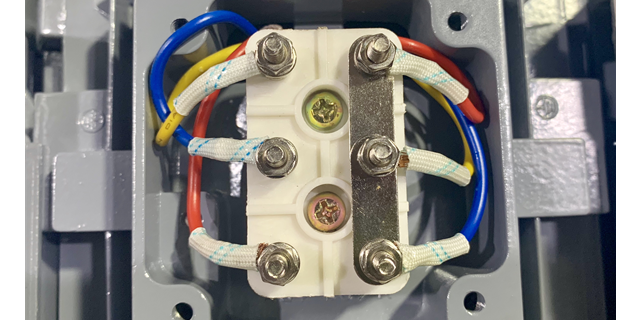

Two wiring methods, one is the star connection, the end of the three-phase winding and the end are connected together, three heads as star points; Or the head and the head together, the three ends as stars; therefore6A joint refers to the connection3One can operate the connection mode, called the star connection, also known asYV-connection.
will6The joint is divided into three groups, each group of two heads, in order to connect three contacts, respectively connected to the power supply, is a triangle; willU1W2-W1V2-V1U2The three contacts that come out in turn are respectively connected to the power supply, which is the triangle connection method, also called△Connect.
△The load voltage of coil per phase of the V connection220V,YV connections are made despite the input voltage380VAnd the actual load voltage per phase coil is220VThree phases380VThe input voltage and the neutral junction of the winding are respectively220V..
The above content is composed ofThree-phase asynchronous motor manufacturersProvided by Senli Motor. If you still want to know about this type of motor or are interested in learning about our products, please leave a message online or call us directly0575-8378-1127.
Long axis torque motor products, suitable for winding and winding scenarios, can be customized for different industry scenarios, to meet the requirements of use. This product produced by Senli has the characteristics of reasonable structure, high efficiency, good characteristics and long service life.
Shengzhou Senli Motor19Old motor manufacturers, with a number of their own motor production lines, from the shell, shaft, rotor, stator are independent production, all products are the use of professional product quality supervision and testing equipment full inspection factory, can provide testing reports. From the shaft machining to the whole machine assembly are completed independently. Truly realize factory direct sales.
Senli motor products are used180°High temperature resistance all copper coil material, torque motor products can be used with different rotors (ordinary rotors/Steel rotor), rotor of different motor characteristics are different, we from the shell, shaft, rotor, stator are produced by the independent, all products are the use of professional product quality supervision and testing equipment full inspection factory, can provide testing reports.
