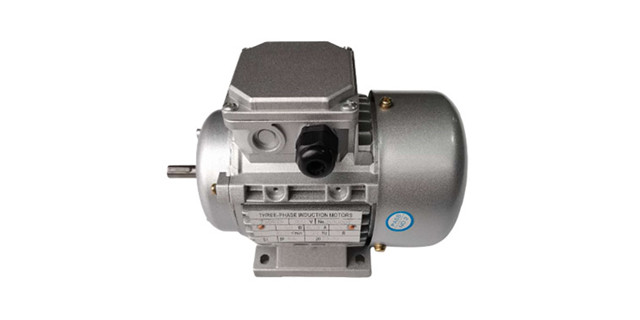

Three-phase asynchronous motors are installed in a variety of ways, such as Senli motorsB3Horizontal mounting,B34Vertical and horizontal installation,B5Vertical large flange mounting andB14Vertical small flange installation, of which the biggest difference between vertical and horizontal asynchronous motors is the installation method, followed by different structural design, the following and Senli motor Xiaobian together to understand it.

       In general, the center height is225The basic series of motors with the following frame numbers are only installed in different ways when in use, such as Senli motors, which can be customized according to customer requirementsAsynchronous motorIf there are special requirements for shaft extension, appearance, etc., it can also be customized, as long as the installation method is consistent, the parameter performance can be matched.

       If the frame number is larger, or the motor bearing is not enough to carry the external force imposed by the specified or actual operation, the structural design scheme is very different.

       Like some especially large uprightAsynchronous motorIt is not only necessary to design the necessary tooling, but sometimes to take some other auxiliary measures, and relatively accurate equivalent test methods. The inspection test does not require two motor shaft tests, just consider that the motor will not damage the bearing when rotating, but the type test, you have to consider the necessary tooling. Some equivalent tests such as overlapping frequency method will be used in the test.

       Mori machineGive birth to3KWAnd the following small power motor, yesThree-phase asynchronous motor manufacturersFrom the shaft processing to the whole machine assembly are completed independently; Available if needed1688Search factory name "Shengzhou Chaoli Electric Appliance Factory" , Or online consultation message, we will have business personnel to get in touch with you, you can also contact us directly0575-8378-1127.
