Because the design parameters of the motor are different, the occasions for its use are also different. Torque motor has soft mechanical characteristics, can achieve constant tension transmission, then what occasion to compare trial? Here is a simple understanding with Senli Motor Xiaobian.

       The characteristics of the torque motor can achieve constant tension transmission, so that the product is suitable for the production process to maintain constant tension and the product is wound at a constant linear speed on the roller.

       For example, printing machinery and winding of the cloth roll, winding structure of the roller, the roller diameter gradually increases, and additional load. It can be seen from the mechanical characteristics of the torque motor that the load automatically increases and the speed automatically decreases, thus maintaining a certain linear speed and tension. This kind of torque motor is often used in textile, printing and dyeing, paper making, rubber, wire and cable industries.

       Constant torque characteristics torque motor, can be in the general speed range is wide, the torque is basically constant, suitable for two speed change, constant torque requirements of the transmission occasion.

       For example, in printing and dyeing machinery, when several rollers are used for fabric transfer, because the fabric on the roller is not a wound, just stays on the surface of the roller drive, the roller diameter does not change, in this case a constant torque torque motor should be used to ensure that at any speed, the torque is constant and the fabric tension is constant.

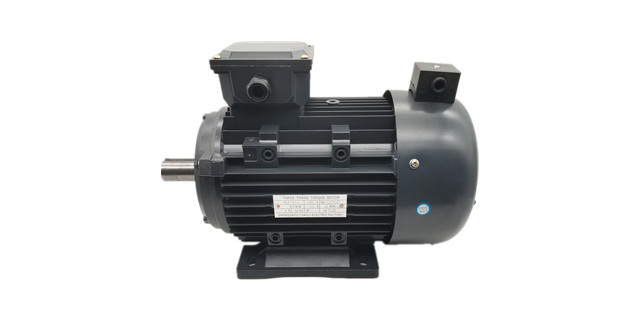

       YLJSeries torque three-phase asynchronous motorIt is a special motor with soft mechanical properties and wide speed regulation range. When the load increases, the motor speed automatically decreases, the output torque increases, and the load balance is maintained. The torque motor has the characteristics of large torque and small locked-rotor current, and can withstand a certain period of locked-rotor operation. Due to its high rotor resistance, large loss, the heat generated is also large, especially when running at low speed and blocking, therefore, the back of the motor end cover is equipped with an independent axial flow or centrifugal fan to force air cooling.

       Mori machine,19Focus on the development and production of electric motors. Available if needed1688Search factory name "Shengzhou Chaoli Electric Appliance Factory" , Or online consultation message, we will have business personnel to get in touch with you, you can also contact us directly0575-8378-1127.
