The working principle of electromagnetic braking motor

Released Date: Nov 23,2021 Article Source: Shengzhou Senli Motor

The DC disc brake of the electromagnetic brake motor is mounted on the end cover of the non-shaft extension end of the motor. When the brake motor is connected to the power supply, the brake will also start to work, the electromagnet will attract the armature and compress the spring due to the effect of electromagnetic suction, the armature end cover and the brake disc will be separated, the motor will start to run; When the power is cut off, the brake electromagnet loses its magnetic attraction, the spring will push the armature, and press the brake disc, and the motor will stop running under the action of friction torque.

The DC disc brake of the electromagnetic brake motor is mounted on the end cover of the non-shaft extension end of the motor. whenBrake motorWhen the power is connected, the brake will also start to work, the electromagnet will attract the armature and compress the spring due to the electromagnetic attraction, the armature end cover and the brake disc will be separated, and the motor will start to run; When the power is cut off, the brake electromagnet loses its magnetic attraction, the spring will push the armature, and press the brake disc, and the motor will stop running under the action of friction torque.

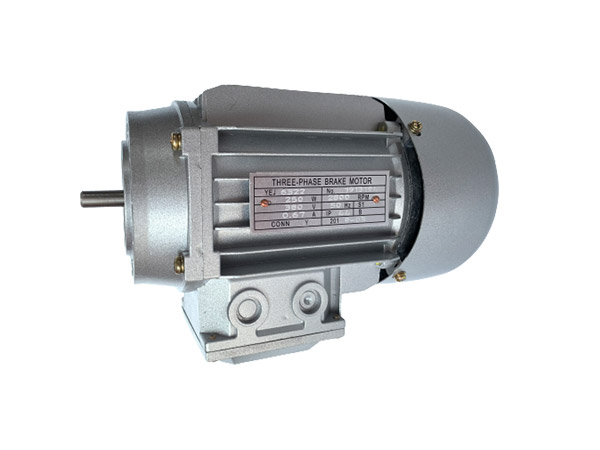

Electromagnetic brake motor manufacturers products

The electromagnetic brake motor works as follows:

Frequency:50Hz-60Hz

Rated voltage:220V,380V

Insulation class isBlevel-Flevel

Level of protection isIP44,IP54andIP55

When the rated power of the electromagnetic brake motor is lower3Kilowatts below, adoptedYType star connection.

When the rated power of the electromagnetic brake motor is higher4Kilowatts above, adopted△Delta connection.

aboveElectromagnetic brake motorThe working principle and working mode.

Senli Motor,19Focus on the development and production of electric motors. Available if needed1688Search factory name "Shengzhou Chaoli Electric Appliance Factory" , Or online consultation message, we will have business personnel to get in touch with you, you can also contact us directly0575-8378-1127.
