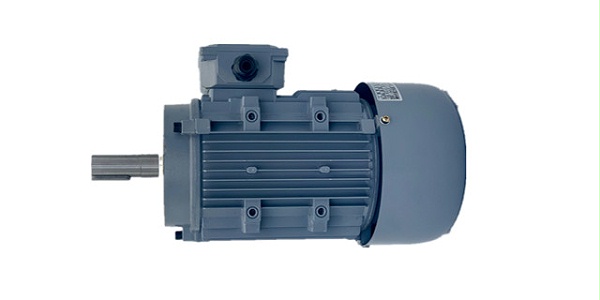

Brake motor, we also call brake motor. Shengzhou Senli motor productionYEJSeries electromagnetic brake motor, can be customized products, customized process: understand the needs-Provide parameters and drawings-Design scheme-Confirmation scheme-Confirm cooperation-Mass production-Deliver the goods-After-sales service; Provide a variety of customization services, specifications customization, appearance customization, special shaft customization and color customization.

       YEJElectromagnetic brake brake motorThe principle of:

       There is an electromagnetic brake at the tail of the motor, when the motor is powered on, it is also powered on, then it does not brake the motor, when the motor is powered off, it is also powered off, and the brake brakes the motor under the action of the spring.

       The two lines are the two AC input ends of a rectifier full bridge and connected to any two line ends of the motor and the motor synchronous input380Volt AC, two DC outputs are connected to the brake excitation coil.

       whenBrake motorWhen energized, the direct current generated by the coil will separate the two friction surfaces at the tail, and the motor will rotate freely, and the motor will brake through the spring recovery force. Depending on the motor power, the coil resistance is between tens to hundreds of euros.

       Senli Motor,19Focus on the development and production of electric motors. Available if needed1688Search factory name "Shengzhou Chaoli Electric Appliance Factory" , Or online consultation message, we will have business personnel to get in touch with you, you can also contact us directly0575-8378-1127.
