Shengzhou Senli Motor, is a dedicated3KWAnd the following small power motor manufacturers; In order to meet the production and use needs of customers, we provide diversified customization services, which can be customized according to the actual needs of customers; Including specification customization, appearance customization, special shaft customization and color customization.Special long shaft torque motor can also be customized according to customer requirements,The shaft can be blackened, galvanized and nickel-plated.

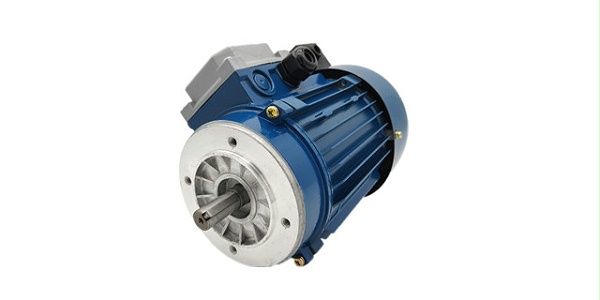

       Mori machineYLJTorque motorTechnical features:

       1.Frame number:H63-H112

       2.very  Number:2,4,6,8,10

       3.Locking torque: up to maximum20N.m

       4.Rotation time:5-30r/min

       4.electricity  Pressure: regular380V/50HZCan be customized to design special voltage three-phase220V/240V/400V/415V/440VEtc.

       5.frequency  Rate:50HZ,60HZ

       7.machine  Shell: cast aluminum, cast iron

       8.Junction box: The default design is on the top of the motor, and the outlet direction can be on the left or right side of the motor,Can be customized on demand

       9.Installation method:B3(horizontal),B34(vertical and horizontal),B5(vertical large flange),B14(vertical small flange)

       10.Insulation level: DefaultBGrade insulation, customizableELv.,HLv.,FClass insulation class

       11.Protection level:IP44

       12.Cooling method:IC0141/IC0041

       13.Connection mode:380VAdopt"Y".220VAdopt"△"Connection

       Mori machineYLJTorque motorOperating conditions:

       1. Ambient air temperature: does not exceed seasonal variation40℃, the minimum temperature does not exceed-15℃

       2. The sea Pull: not more than1000m

       Due to the variety of motor models and specifications, specific parameters need to be provided before purchase, we support the customization of the appearance, the pictures in the website are taken in kind, but the model specifications are more, not comprehensive; Each motor has been strictly inspected before the factory, Senli motor production are made of high-quality cold-rolled silicon steel sheet, all copper core wire, the purchase of products within a year if there are non-human quality problems can be free warranty, if caused by improper use, need to charge maintenance fees.

       Available if needed1688Search factory name "Shengzhou Chaoli Electric Appliance Factory" , Or online consultation message, we will have business personnel to get in touch with you, you can also contact us directly0575-8378-1127.
