The last part we talk about torque motor manufacturers lathe processing, rotor finishing, stator coil winding processing process requirements, Senli motor19Focus on the field of motor, the old motor manufacturer, is the source of independent research and development manufacturers, the following Senli motor Xiaobian for everyone to share today's content:

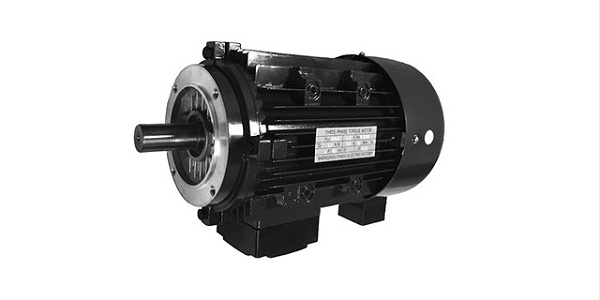

       I.Torque motorProcess requirements for stator wiring and binding

       1.Check whether the coil and stator received are consistent with the production plan, and the slot insulation, phase insulation and slot wedge should be consistent with the specifications and models of the stator;

       2.When inserting slot insulation into the stator groove, both ends should be evenly higher5-8mmThe winding coil is placed into the wire slot in turn, the line is straightened out, and then the upper layer insulation is placed, and the insulation between the layers is strictly classified into two groups of coils;

       3.Insert the slot insulation overlap pad into the slot, insert the slot wedge, the stator wire wrap shape, the outer circle and height meet the requirements, insert the insulation phase, insert the insulation sleeve, and bind the end of the wire wrap;

       4.The stator winding is checked on and off, and the dielectric strength between the core and the winding is measured (2160V/SThere should be no breakdown)

       Two.Torque motorProcess requirements for embedding stator dipping

       1.After the painting is finished out of the box, it is necessary to check the on-off condition of the winding, and check the appearance of the stator for collision and friction after completion. The inner and outer rings of the stator are free of lacquer distillation, paint column and thick patent leather, and are kept dry and non-adhesive. Check the winding insulation resistance after dipping and cooling.

       Three.Torque motorAssembly process requirements

       1.When the rotor is assembled, the bearing should be pressed to the corresponding position to ensure that the bearing is aligned, and the rotor is assembled and painted. The frame is pressed with a winding stator core:The stator core is pressed into the heated frame, and the stator core buckle should be aligned with the screw hole of the frame, and pay attention to the position of the stator lead line;

       2.When the protective sleeve is installed, it is necessary to lead the protective sleeve of the motor outlet line to the outside of the motor according to the motor wiring diagram, and then fix the protective sleeve on the frame with a gasket to prevent the cable from loosening.

       3.In the final assembly, the parts are installed and the nameplate label is riveted, and the factory test is made after the final assembly to ensure that the product inspection meets the standard.

       Torque motor manufacturerMori machineMaintain the "three Nos" attitude for unqualified products: no accept, no manufacture, no outflow; If you want to know more about this type of motor or are interested in learning about our products, please leave a message online or call us directly0575-8378-1127.
